12T 50m Freestanding Height Topless Tower Crane Series with Slewing Motor and Inverter

Name: 12T 50m Freestanding Height Topless Tower Crane Series with Slewing Motor and Inverter
Brand: HYCM-TOWER CRANE
Price: 1 USD

Quality 12T 50m Freestanding Height Topless Tower Crane Series with Slewing Motor and Inverter wholesale

Brand Name : HYCM-TOWER CRANE

Model Number : PT6425

Certification : CE, ISO, GOST, CU-TR

Place of Origin : China

MOQ : 1 set of 12ton topless tower crane

Price : Negotiation

Payment Terms : 30% advance payment and balance before shipment or by copy of B/L OR 100%LC at sight

Supply Ability : 200 pcs of 12ton topless tower crane each month

Delivery Time : about 35 days after receiving the advance payment

Packaging Details : In nude or as customized, 20'GP or 40'HQ containers for 12ton topless tower crane

Type : 12T 50m Freestanding Height Topless Tower Crane Series with Slewing Motor and Inverter

Mast section dimensions : 2.0*2.0*3.0m

Max. load : 12 tons

After-sales service provided : Engineers available to service machinery overseas

Main limb angle steel : Single limb 200X20mm / Q345B split type

Trolleying speed : 0-60m/min

Hoisting speed : 0-100 0-50m/min

Warranty : 12 Months from BL date

Tip Load : 2.5 Tons

Contact Now

12T 50m Freestanding Height Topless Tower Crane Series with Slewing Motor and Inverter

Specifications for 12T 50m Freestanding Height Topless Tower Crane Series with Slewing Motor and Inverter

Main Performance		Main Specifications
Rated lifting moment (KN.m)		2300
Max. lifting load(t)		12
Tip load(t)		2.5
Working range(m)		64
Lifting height(m)	Freestanding height	50
Lifting height(m)	Attaching height	200
Mast section	Main limb angle steel (mm)	Single limb 200X20 / Q345B split type
Mast section	Section size(mm)	2000X2000X3000
Lifting jib	Upper chord(mm)	∠160X12 two angle steel / Q345B
	Lower chord(mm)	∠125X12 two angle steel / Q345B
	Parallel face width (mm)	1450
Counter jib	Length(m)	∠125X12 two angle steel / Q345B
Counter jib	Length(m)	15.575
Hoisting mechanism	Reducer	45TLQ25
	Motor	YZTPF225M-4-J13021-45KW
	Brake	YWZ-300/45
	Wire rope	6X37-16-1770-1-1 right lay
	Hoisting speed (m/min)	0-100 0-50
Slewing mechanism	Reducer	XX₄-120AI
	Motor	YZR132-6-5.5KW
	Slewing speed (r/min)	0-0.6
Trolleying mechanism	Reducer	GKAP87-Y5.5-4P-44.2-M_1-IEC
	Motor	YPB132S-4-5.5KW
	Trolleying speed( m/min)	0-60
Jacking-up speed	Hydraulic pump station Jacking oil cylinder	TQY125/180/125
Jacking-up speed	Motor	Y132M-4
Slewing bearing	Type	1600.45

Features for 12T 50m Freestanding Height Topless Tower Crane Series with Slewing Motor and Inverter

Tower crane equipped with fixed tower body and piece-type tower body forms,there are lots of specification and modles for users' selections, beautiful in appearance, compact in structure, complete in safety facilities, stable and reliable in quality, performance leading in the country, products comanding a ready market in the country and exporting in batches. They can widely apply to high-rise hotel,

resident houses, industry buildings, large-span factory and so on.

Safety Feathers for 12T 50m Freestanding Height Topless Tower Crane Series with Slewing Motor and Inverter

1.Overload protection: If the material is over the capacity, the tower crane will give a sharp warning for protecting itself.

2.Emergency brake: If the operation staff encounters some emergency situation, we could start the emergency brake system to protect the related treasure.

3.Control Method: Remote control is to avoid any injury to the operation staffs.

4.Main lifting motor: if needed, there will be with thermal protection and currency protection.

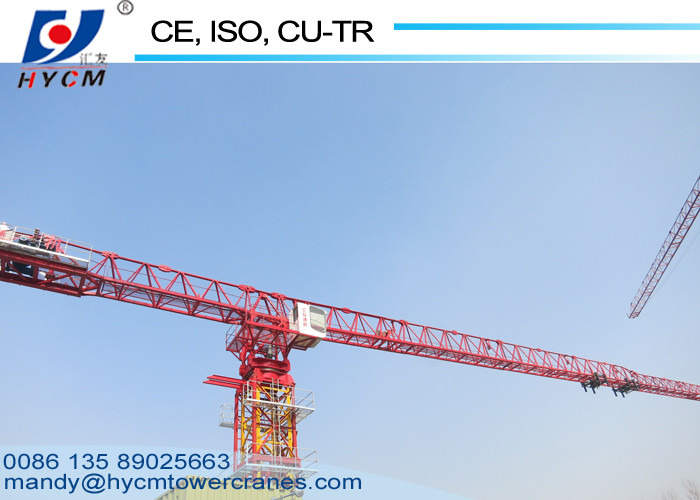

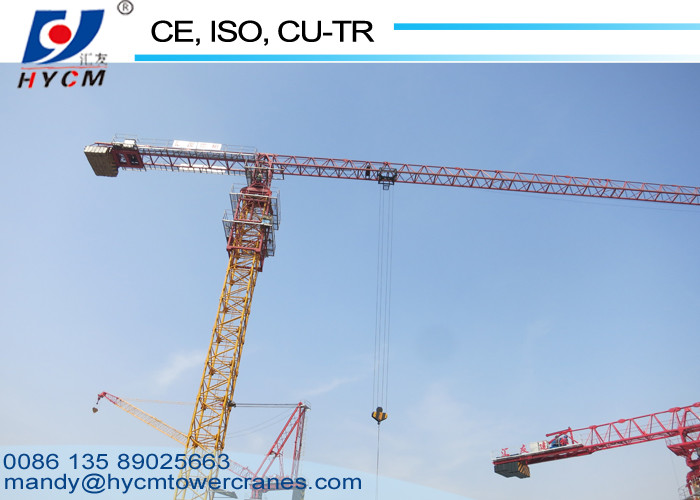

Photos for 12T 50m Freestanding Height Topless Tower Crane Series with Slewing Motor and Inverter
