QTD63 Luffing Jib Tower Crane with 25m Boom and 6.0ton Max. Load
Safety devices for QTD63 Luffing Jib Tower Crane with 25m Boom and 6.0ton Max. Load
1) Wind lock device
2) Over load limit
3) Hoist height limit
4) Over speed limit
5) Slewing angle limit
6) Lifting moment limit
7) Emergency stop button
8) Obstruction light (tip of jib, tower head)
Performance parameters for QTD63 Luffing Jib Tower Crane with 25m Boom and 6.0ton Max. Load
• Max. jib length: 25m;
• Max. lifting capacity: 6.0ton @4 Fall, 3.0ton @2 Fall;
• Freestanding height: 34.5m;
• Rated lifting moment: 630 Kn.m;
• Mast section dimension: 1.2*1.2*3m
• Material: angle steel 160 ×16mm
Specifications for QTD63 Luffing Jib Tower Crane with 25m Boom and 6.0ton Max. Load
| Model | QTD2520 |
| Working Radius (m) | 25 |
| Max. Load Capacity (t) | 6tons |
| Tip Load (t) | 2.0 |
| Mast Section Height (m) | 34.5 |
| Mast Section dimension (m) |
| 1.2×1.2×3 (block type), angle steel 160 ×16mm |
| Hoisting Mechanism | Speed (m/min) | 0-86 0-43 |
| Motor type | YZTPF180L-4 |
| Reducer type | V3SH4-35.5-B-T |
| Slewing Mechanism | Speed (r/min) | 0-0.6 |
| Motor type | YTW132M2-6B5 |
| Reducer type | XX4-80.A1 |
| Trolleying Mechanism | Speed (m/min) | 0-10 |
| Motor type | YZPF200L1-4-26KW |
| Reducer type | V3SHS-20 |
| Jacking-up System | Speed (m/min) | 0.4 |
| Motor power (kw) | 5.5 |
| Total Power (kw) | 63 (not includes jacking-up system) |
| Power Supply | 380V/50Hz |
| No. of containers |
| 3 x 40’HQ containers (block mast section) |
Our Service for QTD63 Luffing Jib Tower Crane with 25m Boom and 6.0ton Max. Load
Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.

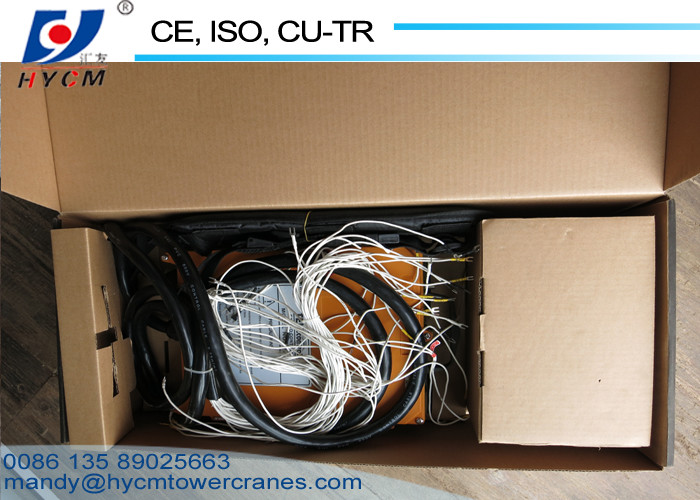

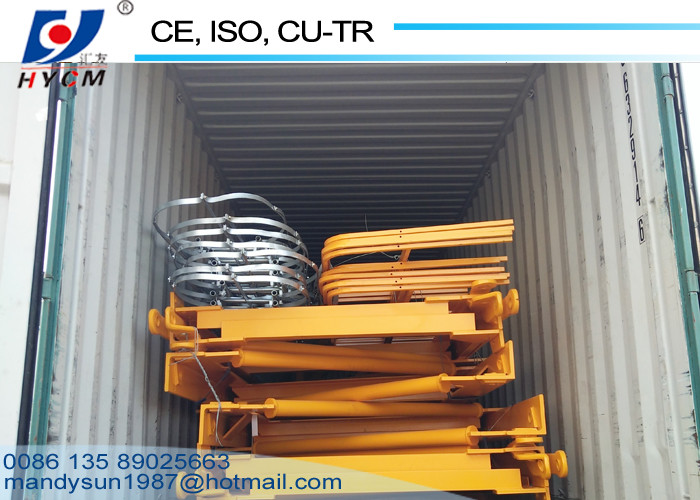

Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
Warranty Assurance
For our tower crane, we provide 1 year (from BL date) warranty period and quick replace service.
Our Skilled Team
Our R&D team is made up of the most prestigious, experienced engineers and experts in this field.
Our technicians team are all experienced senior mechanicians.
We provide satisfactory service (pre-sale, while-sale, after-sale).
Our professional advice and instruction are always available and acceptable.

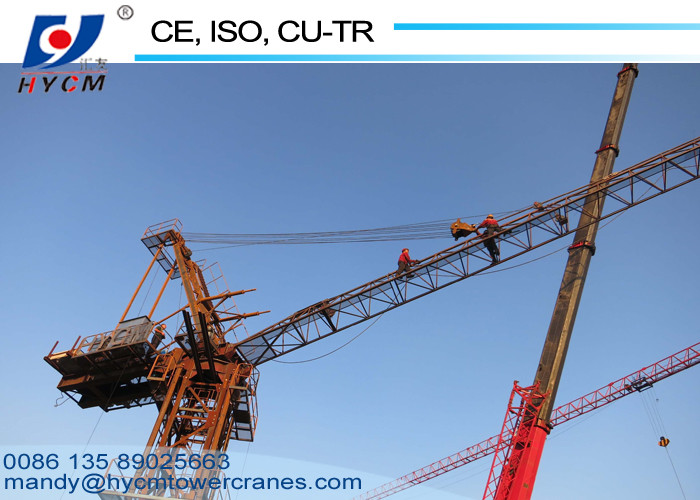

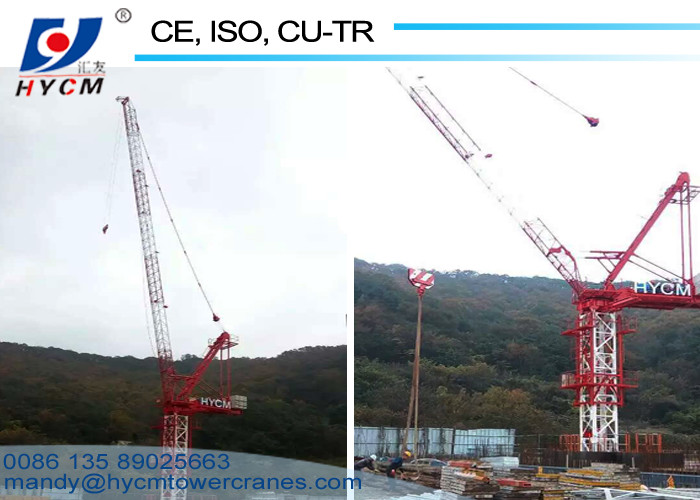

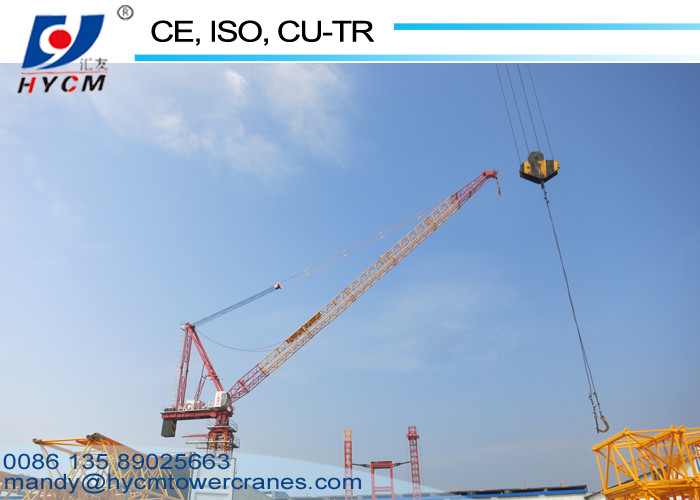

Photos for QTD63 Luffing Jib Tower Crane with 25m Boom and 6.0ton Max. Load
|
|
QTD63 Luffing Jib Tower Crane with 25m Boom and 6.0ton Max. Load Images
|
