Good Price Luffing Tower Crane High Quality in China 8t Luffing Tower Crane QTD5030
Specifications for Good Price Luffing Tower Crane High Quality in China 8t Luffing Tower Crane QTD5030
| Main Performance | Main Specifications |
| Rated lifting moment (KN.m) | 1600 |
| Max. lifting load(t) | 10 |
| Tip load(t) | 3.0 |
| Working range(m) | 5~50 |
| Lifting height(m) | Freestanding height | 40 |
| Attaching height | 162 |
| Mast section | Main limb (mm) | ∠200X200X20/ Q345B |
| Section size(mm) | 2000X2000X3000 |
| Lifting jib | Upper chord(mm) | 108X10 Seamless tube/ 20# |
| Lower chord(mm) | 108X10 Seamless tube/ 20# |
| Counter jib | Length(m) | 8500 |
| Hoisting mechanism | Reducer | 37TLQ25 |
| Motor | YZTPF225M-4-J13021-37KW |
| Brake | YWZ-300/45 |
| Wire rope | 6X37-16-1770-1-1 right lay |
| Hoisting speed (m/min) | 0-100 0-50 |
| Slewing mechanism | Reducer | XX4-120AI |
| Motor | YZP132-6-5.5KW |
| Slewing speed (r/min) | 0-0.6 |
| Trolleying mechanism | Reducer | 35TLQ20 |
| Motor | YZTPF225M-4-J13021-35KW |
| Trolleying speed( m/min) | 0-10 |
| Jacking-up speed | Hydraulic pump station Jacking oil cylinder | TQZ160/180/125 |
| Motor | 11KW |
| Slewing bearing | Type | 1600.45 |

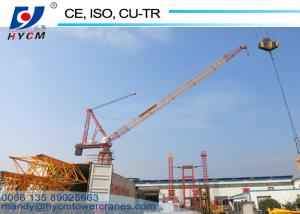

Photos for Good Price Luffing Tower Crane High Quality in China 8t Luffing Tower Crane QTD5030
FAQ for Good Price Luffing Tower Crane High Quality in China 8t Luffing Tower Crane QTD5030
Q1: What is the Warranty for tower cranes?
A1: For the tower cranes, we can supply 1 year warranty. If there is quality problem of any parts (excluding easy worn spare parts) on our side during this period, we will supply a new one by free for replacement
Q2: What are the optional parts for your tower cranes?
A2: 1) Anemometer
2) Air conditioner for operation cab
3) Black box for operation cab
4) Remote control
5) Full VFD (Variable Frenquency Drive) control
Q3: How many types of foundation for your tower crane?
A3: The most popular types of foundation are Cross-beam type, Well-shaped type, Base with ballast type and Outrigger type.
By the way, our commonly used one is Cross-beam type. If you need any other type, please let us know when you make the order. Thanks!
Q4: How many countries had your tower cranes exported to?
A4: Our tower cranes had exported to more than 30 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar, Thailand and Algeria etc.
Disadvantages for using a luffing jib tower crane / But there are some disadvantages of the ‘luffers’ when you compare them to other types of tower crane
1> The price of the luffing jib tower crane is much higher than a regular tower crane. The tower frames of a ‘luffer’ are stronger, and the luffing mechanisms are much bigger than the hoist system of a tower crane. Of course the technology applied to move the jib, counterweights, etc is the highest.
2> The cost of assembling and dissassembling are much higher too. Most of the structures are heavier, and it takes longer to erect a luffing jib tower crane. Once again, to erect a luffer is more difficult due to the technology applied, etc.
3> The jib of a ‘luffer’ acts as wall to the wind, and the ‘moment’ is much bigger. So the restrictions of the tower are higher.
4> Due to the luffers don´t have trolley motor (the movemnet is made by the total jib), the working process are slower than in other type of tower crane.
|
|
